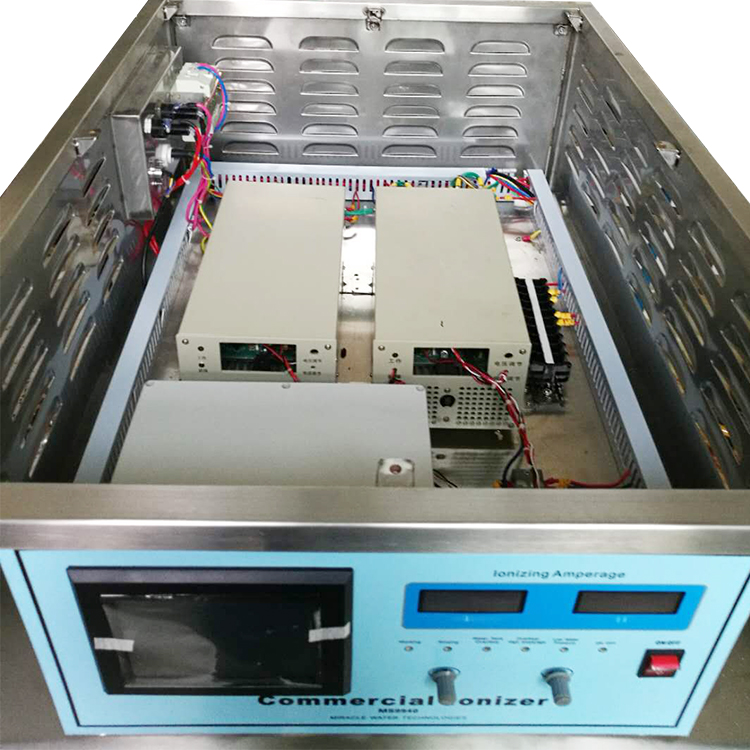

Commercial Water Ionizer MS9940

Description:Commercial Water Ionizer is a pH value regulator. The regulator is mainly used to adjust the pH value of source water to meet the industrial, health and other needs.

Operating principle : Source water by the solenoid valve / Globe Valve / pressure limiting valve into the electrolyzer.

Under the effect of the DC electric field making following reaction between the cathode electrode and anode electrode in the electrolyzer.

Cathode chamber reaction 2H2O+2e-→H2↑+2OH- Ca2++2OH-→Ca(OH)2

the anode reaction chamber nearby 2H2O→O2↑+4H++4e-

alkaline acidic water machine water electrolysis equipment

Water which is flowing through the cathode chamber under the effect of the membrane,the OH density will be increased,pH value will be increased .And the one in the anode chamber,H + increased,the water pH value decreases.

Function

1.With a regular automatic reversing device, can continuously work 24 hours.

2.With the settings of electrolyte strength adjustment , alkaline, acidic electrolyzed water flow rate display; low pressure, and overheat, over-current protection devices, etc.; (Electrolytic current exceeds 28A will make auto-off water protection).
